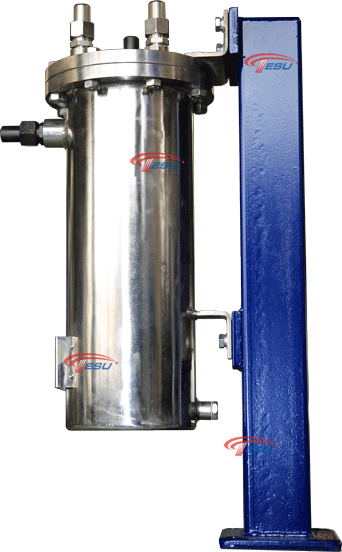

P21/P41 Series Seal Flush System

P21/P41 series seal flush system conforms API 682 for design, manufacture, test and inspection, also meet the relevant requirement of GB150-1999. The whole system is used for cooling the flush liquid in the mechanical seal circulation to reduce the temperature of mechanical seal operating temperature. The advantage of this system is not only supply the cooling liquid but also have enough pressure difference to ensure flushing flow. The exchanged heat coil is inside in the seal pot, its modular design, and combination with other parts (such as Vent vale, drain vale, temperature gauge, ect.) can reach a wide range of applications.
System Paramenters
1.Working temp.(Tube):0～300℃
2.Working press.Tube):≤5.0MPa
3.Heat exchanger area:0.4㎡/0.6㎡/0.8㎡/1.0㎡
System Features
1.Heat exchanger can be dismantled that make cleaning the tubes become easier, reduce maintenance costs.
2.It can be completely vented and drained through the valve in shell side.
3.This system can increase fluid vapor margin, and meet the limit temperature of sealing metal parts.
