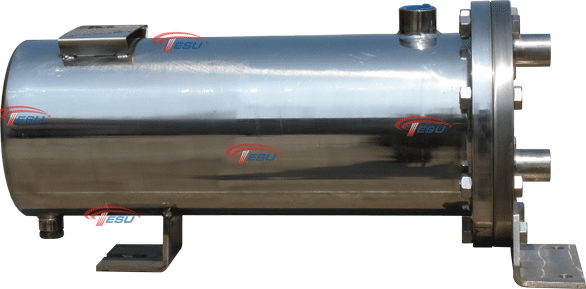

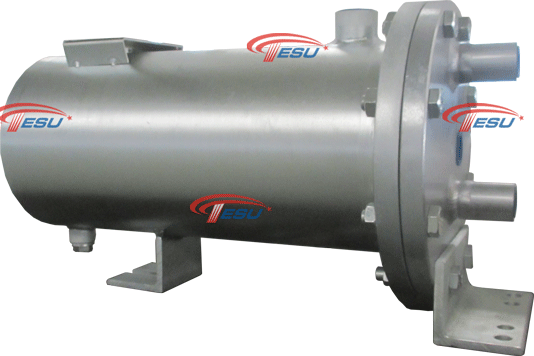

HRQ Type Heat Exchanger

HRQ Type Heat Exchanger is typical coil heat exchanger. Double Coils around a Guide Tube. Both vertical and horizontal are available. There is two installation type (vertical and horizontal) and 8 different models, and meet the requirement of API 682. This product can be used in Plan21, Plan23 and Plan41.
System Paramenters
1.Working temp.(Tube):0～300℃
2.Working press.Tube):≤5.0MPa
3.Heat exchanger area:0.4㎡/0.6㎡/0.8㎡/1.0㎡
System Features
1.Standard design comply with API682-2004.
2.Installation: Vertical and horizontal are available.
3.Heat exchanger can be dismantled that make cleaning the tubes become easier.
